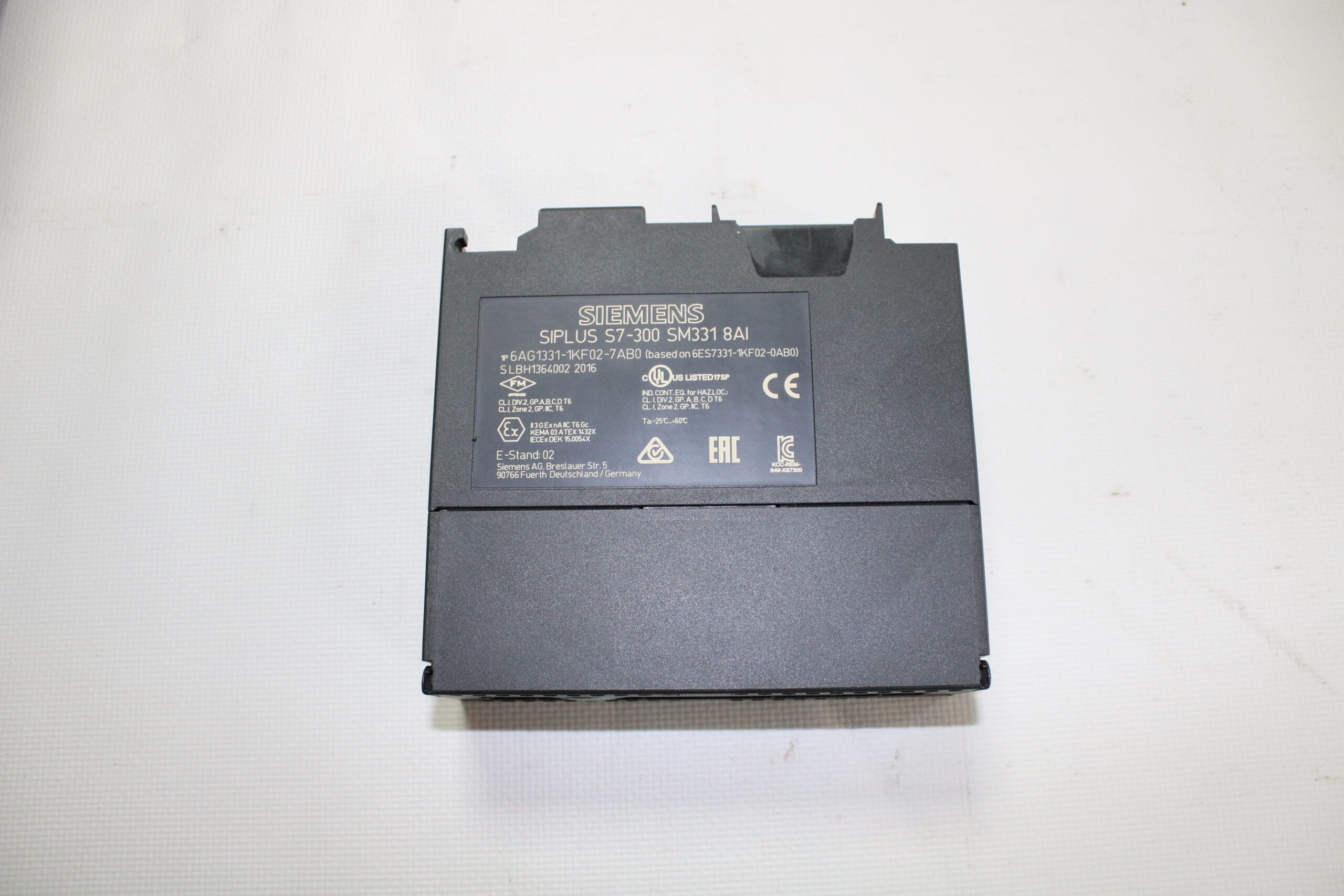

6AG1331-1KF02-7AB0 – SIEMENS

Stokta

SIPLUS S7-300 SM 331 8AI based on 6ES7331-1KF02-0AB0 with conformal
coating, -25…+70 °C, isolated 8 AI, resolution 13 bit U/I/resistance/Pt100, NI100,
NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole

Açıklama

WARNING: For see product specifications click “SPECIFICATIONS”.
UYARI: Ürün özelliklerini görmek için “SPECITIFATIONS”a tıklayınız.

6AG1331-1KF02-7AB0 – SIEMENS

SIPLUS S7-300 SM 331 8AI based on 6ES7331-1KF02-0AB0 with conformal
coating, -25…+70 °C, isolated 8 AI, resolution 13 bit U/I/resistance/Pt100, NI100,
NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole

6AG1331-1KF02-7AB0 - SIEMENS

Input current
from backplane bus 5 V DC, max. 90 mA
Power loss
Power loss, typ. 0.4 W
Analog inputs
Number of analog inputs 8
● For resistance measurement 8
permissible input voltage for voltage input (destruction limit),
max.
30 V; 12 V continuous, 30 V for max. 1 s
permissible input current for current input (destruction limit),
max.
40 mA
Input ranges
● Voltage Yes
● Current Yes
● Thermocouple No
● Resistance thermometer Yes
● Resistance Yes
Input ranges (rated values), voltages
● 0 to +10 V Yes
— Input resistance (0 to 10 V) 100 kΩ
● 1 V to 5 V Yes
— Input resistance (1 V to 5 V) 100 kΩ
● 1 V to 10 V No
● -1 V to +1 V Yes
— Input resistance (-1 V to +1 V) 100 kΩ
● -10 V to +10 V Yes
— Input resistance (-10 V to +10 V) 100 kΩ
● -2.5 V to +2.5 V No
● -250 mV to +250 mV No
● -5 V to +5 V Yes
— Input resistance (-5 V to +5 V) 100 kΩ
● -50 mV to +50 mV Yes
— Input resistance (-50 mV to +50 mV) 100 kΩ
● -500 mV to +500 mV Yes
— Input resistance (-500 mV to +500 mV) 100 kΩ
● -80 mV to +80 mV No
Input ranges (rated values), currents
● 0 to 20 mA Yes
— Input resistance (0 to 20 mA) 100 Ω
● -10 mA to +10 mA No
● -20 mA to +20 mA Yes
— Input resistance (-20 mA to +20 mA) 100 Ω
● -3.2 mA to +3.2 mA No
● 4 mA to 20 mA Yes
— Input resistance (4 mA to 20 mA) 100 Ω
Input ranges (rated values), thermocouples
● Type B No
● Type C No
● Type E No
● Type J No
● Type K No
● Type L No
● Type N No
● Type R No
● Type S No
● Type T No
● Type U No
● Type TXK/TXK(L) to GOST No
Input ranges (rated values), resistance thermometer
● Cu 10 No
● Ni 100 Yes; Standard/climate
— Input resistance (Ni 100) 100 MΩ
● Ni 1000 Yes
— Input resistance (Ni 1000) 100 MΩ
● LG-Ni 1000 Yes; Standard/climate
— Input resistance (LG-Ni 1000) 100 MΩ
● Ni 120 No
● Ni 200 No
● Ni 500 No
● Pt 100 Yes; Standard/climate
— Input resistance (Pt 100) 100 MΩ
● Pt 1000 No
● Pt 200 No
● Pt 500 No
Input ranges (rated values), resistors
● 0 to 150 ohms No
● 0 to 300 ohms No
● 0 to 600 ohms Yes
— Input resistance (0 to 600 ohms) 100 MΩ
● 0 to 6000 ohms Yes
— Input resistance (0 to 6000 ohms) 100 MΩ
Characteristic linearization
● parameterizable Yes
— for resistance thermometer yes; Pt100 standard/air con.; Ni100 standard/air con.; Ni1000 standard/air con.;
LG-Ni1000 standard/air con.
Cable length
● shielded, max. 200 m; max. 50 m at 50 mV
Analog value generation for the inputs
Integration and conversion time/resolution per channel
● Resolution with overrange (bit including sign), max. 13 bit
● Integration time, parameterizable Yes; 60 / 50 ms
● Basic conversion time (ms) 66 / 55 ms
● Interference voltage suppression for interference
frequency f1 in Hz
50 / 60 Hz
Encoder
Connection of signal encoders
● for voltage measurement Yes
● for current measurement as 2-wire transducer Yes; with external supply
● for current measurement as 4-wire transducer Yes
● for resistance measurement with two-wire connection Yes
● for resistance measurement with three-wire connection Yes
● for resistance measurement with four-wire connection Yes
Errors/accuracies
Operational error limit in overall temperature range
● Voltage, relative to input range, (+/-) 0.6 %; ±0.6 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); ±0.5 % (±50 mV, 500 mV, 1 V)
@ 0 ... +60 °C; ±0.7 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); ±0.6 % (±50 mV, 500
mV, 1 V) @ -25 ... +70 °C
● Current, relative to input range, (+/-) 0.5 %; @ 0 ... +60 °C; ±0.6% @ -25 ... +70 °C; ±20 mA, 0 to 20 mA, 4 to 20 mA
● Resistance, relative to input range, (+/-) 0.5 %; @ 0 ... +60 °C; 0.6% @ -25 ... +70 °C; 0 to 6 kohm, 0 to 600 kohm
1 Kelvin (Pt100, Ni100, climate; Ni1000, LG-Ni1000, standard; Ni1000, LGNi1000, climate); 1.2 Kelvin (Pt100, Ni100, standard) @ 0 ... +60 °C; 1.2 Kelvin
● Resistance thermometer, relative to input range, (+/-)
(Pt100, Ni100, climate; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000,
climate); 1.4 Kelvin (Pt100, Ni100, standard) @ -25 ... +70 °C
Basic error limit (operational limit at 25 °C)
● Voltage, relative to input range, (+/-) 0.4 %; 0.4% (±5 V, 10 V, 1 to 5 V, 0 to 10 V); 0.3% (±50 mV, 500 mV, 1 V)
● Current, relative to input range, (+/-) 0.3 %; ±20 mA, 0 to 20 mA, 4 to 20 mA
● Resistance, relative to input range, (+/-) 0.3 %; 0 to 6 kohms, 0 to 600 kohms
● Resistance thermometer, relative to input range, (+/-) 1 Kelvin (Pt100, Ni100, standard); 0.8 Kelvin (Pt100, Ni100, climatic; Ni1000,
LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic)
Interrupts/diagnostics/status information
Diagnostics function No
Alarms
● Diagnostic alarm No
● Limit value alarm No
Diagnoses
● Diagnostic information readable No
Diagnostics indication LED
● Group error SF (red) No
Potential separation
Potential separation analog inputs
● between the channels No
● between the channels and backplane bus Yes
Isolation
Isolation tested with 500 V DC
Standards, approvals, certificates
CE mark Yes
UL approval Yes; File E239877
RCM (formerly C-TICK) Yes
KC approval Yes
EAC (formerly Gost-R) Yes
Railway application
● EN 50121-4 No
● EN 50155 No
Ambient conditions
Ambient temperature during operation
● min. -25 °C
● max. 70 °C; = Tmax; 60 °C @ UL/cUL, ATEX and FM use
Altitude during operation relating to sea level
● Installation altitude above sea level, max. 5 000 m
● Ambient air temperature-barometric pressure-altitude Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax
- 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K)
at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity
● With condensation, tested in accordance with IEC 60068-
2-38, max.
100 %; RH incl. condensation/frost (no commissioning under condensation
conditions)
Resistance
Use in stationary industrial systems
— to biologically active substances according to EN
60721-3-3
Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna);
Class 3B3 on request
— to chemically active substances according to EN
60721-3-3
Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity
degree 3); *
— to mechanically active substances according to EN
60721-3-3
Yes; Class 3S4 incl. sand, dust, *
Use on ships/at sea
— to biologically active substances according to EN
60721-3-6
Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on
request
— to chemically active substances according to EN
60721-3-6
Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity
degree 3); *
— to mechanically active substances according to EN
60721-3-6
Yes; Class 6S3 incl. sand, dust; *
Usage in industrial process technology
— Against chemically active substances acc. to EN
60654-4
Yes; Class 3 (excluding trichlorethylene)
— Environmental conditions for process, measuring
and control systems acc. to ANSI/ISA-71.04
Yes; Level GX group A/B (excluding trichlorethylene; harmful gas
concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level
LC3 (salt spray) and level LB3 (oil)
Remark
— Note regarding classification of environmental
conditions acc. to EN 60721, EN 60654-4 and
ANSI/ISA-71.04
* The supplied plug covers must remain in place over the unused interfaces
during operation!
connection method
required front connector 40-pin
Dimensions
Width 40 mm
Height 125 mm
Depth 117 mm
Weights
Weight, approx. 250 g
