ABB Procontic CS 31 Central Unit 24VDC 5W 07KR31

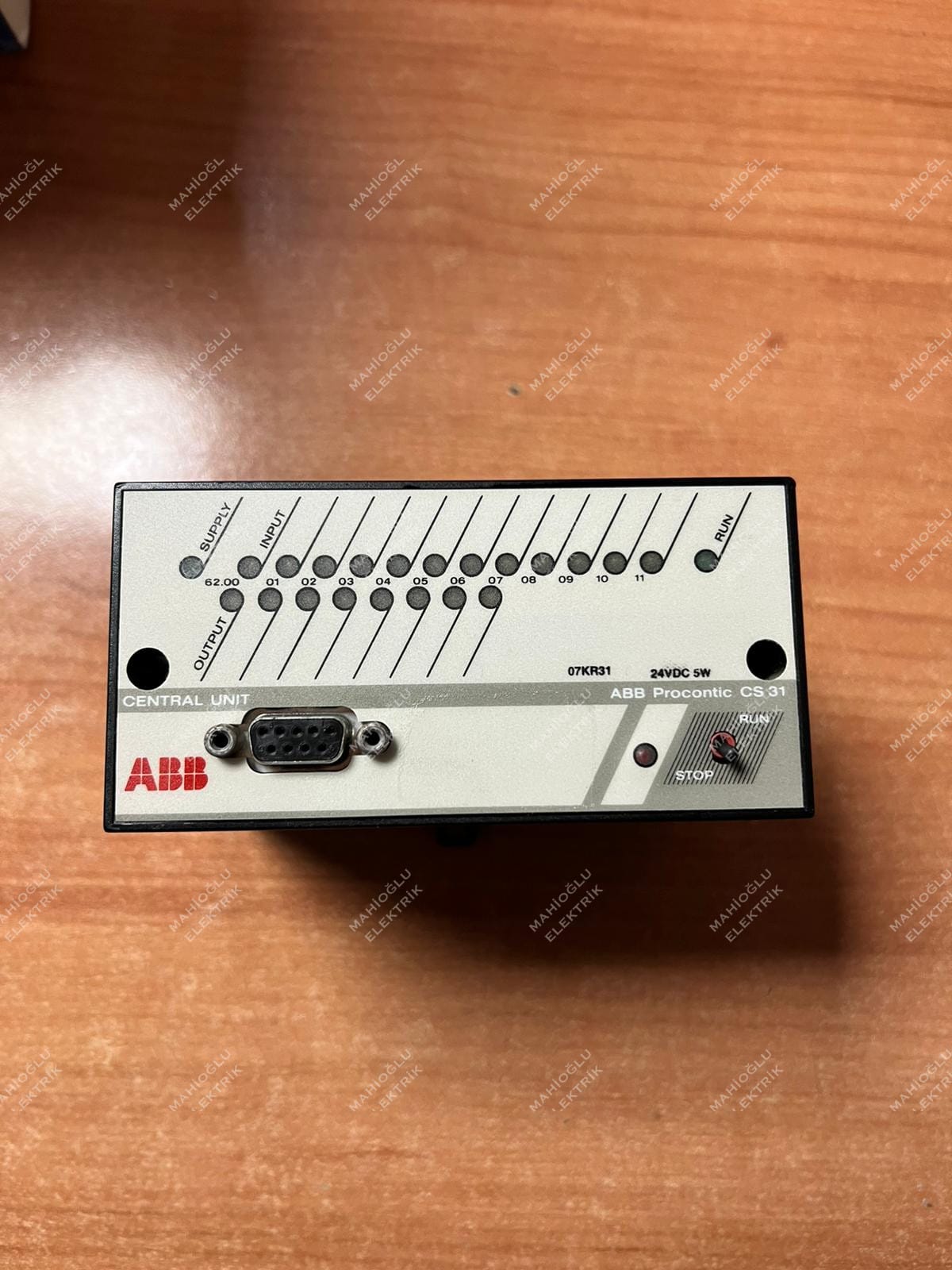

ABB Procontic CS 31 Central Unit 24VDC 5W 07KR31
ABB Procontic CS 31 Central Unit 24VDC 5W 07KR31 - Görsel 2

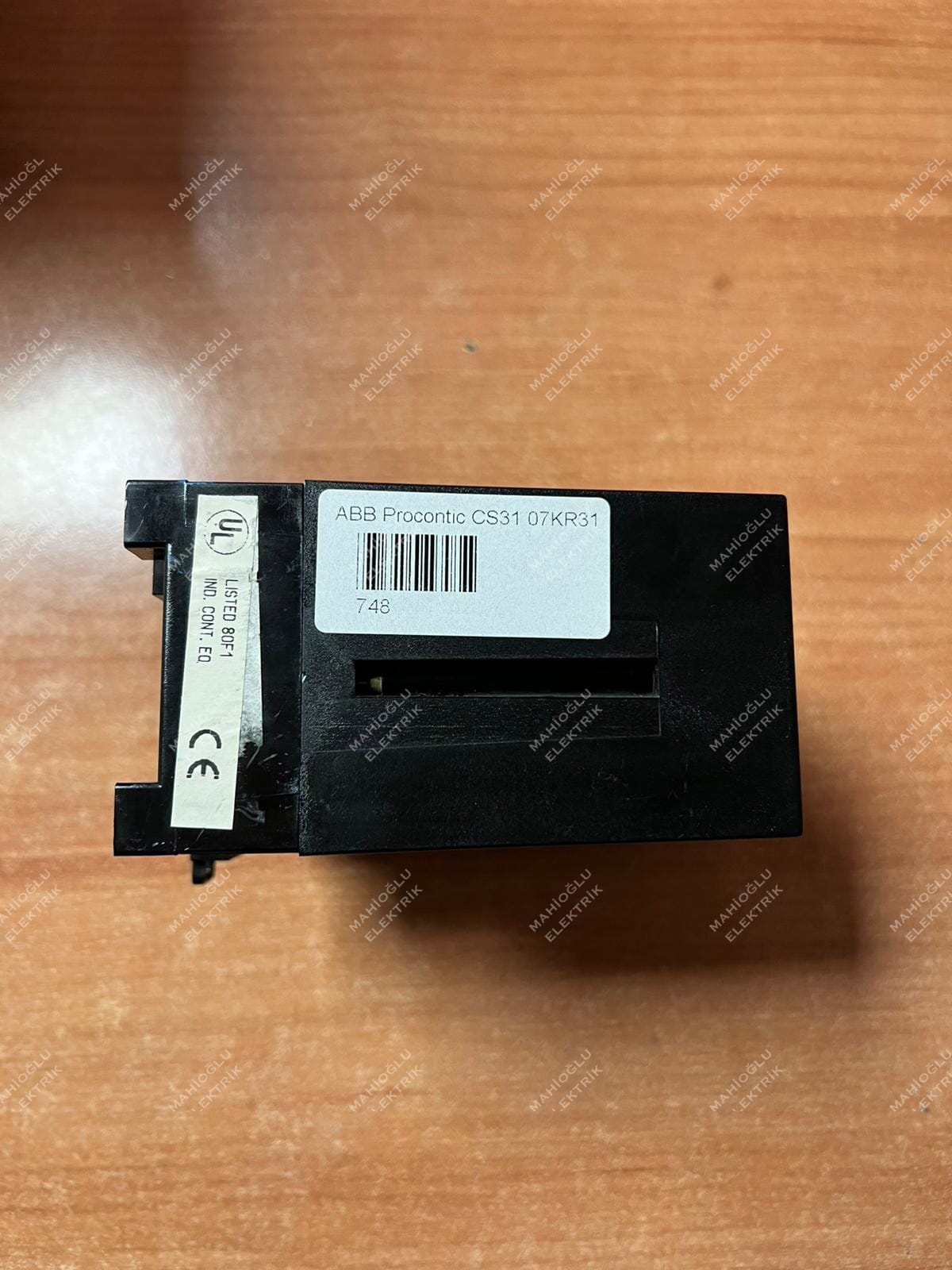

ABB Procontic CS 31 Central Unit 24VDC 5W 07KR31 - Görsel 3
Stokta

İkinci el üründür, sıfır ayarındadır.
Used item, in good condition, so clean, like new

Order on WhatsApp
Kategori:
Etiket: , , ,

Açıklama

İkinci el üründür, sıfır ayarındadır.
Used item, in good condition, so clean, like new

ABB Procontic CS31 07KR31 is a central processing unit (CPU) designed for industrial automation and distributed control applications. It can operate as a standalone PLC or as a bus master within the CS31 distributed I/O system.

Technical Specifications

Specification Value
Model 07KR31
Series Procontic CS31
Product Type Central Unit (CPU)
Supply Voltage 24 VDC
Power Consumption 5 W
Maximum Current Consumption 0.3 A
Program Memory 2K instruction EEPROM (8 KB)
Digital Inputs 12 × 24 VDC
Digital Outputs 8 × Relay Outputs
Relay Output Rating 2 A
Communication Ports RS-232C, RS-485 (CS31 bus)
Modbus Support Master and Slave
High-Speed Counter 10 kHz
Real-Time Clock Integrated
Programming Capability Online programming supported
Maximum Analog Inputs 224
Maximum Analog Outputs 48
Maximum External Digital Inputs 744
Maximum External Digital Outputs 496
Mounting Type DIN rail / ECZ plug-in base
Dimensions Approx. 120 × 85 × 64 mm
Weight Approx. 0.25 kg
Protection Varistor protection on relay outputs

Digital Input Specifications

Parameter Value
Nominal Input Voltage 24 VDC
Logic “0” Level -3 … +5 V
Logic “1” Level +15 … +30 V
Input Current 5 mA
Input Delay 5 ms

Relay Output Specifications

Parameter Value
Output Type Relay
Isolation Yes
AC Load Capacity 120/230 VAC, 2 A
DC Load Capacity 60 W (2 A)
Minimum Contact Load 12 VDC / 10 mA
Total Current (M-Q) 6 A
Total Current (R-T) 4 A

Main Features

  • Integrated MODBUS master/slave communication
  • CS31 distributed I/O communication support
  • Built-in real-time clock (RTC)
  • 10 kHz high-speed counter
  • LED status indicators
  • Password-protected program access
  • DIN rail mounting
  • Suitable for industrial automation and process control applications
