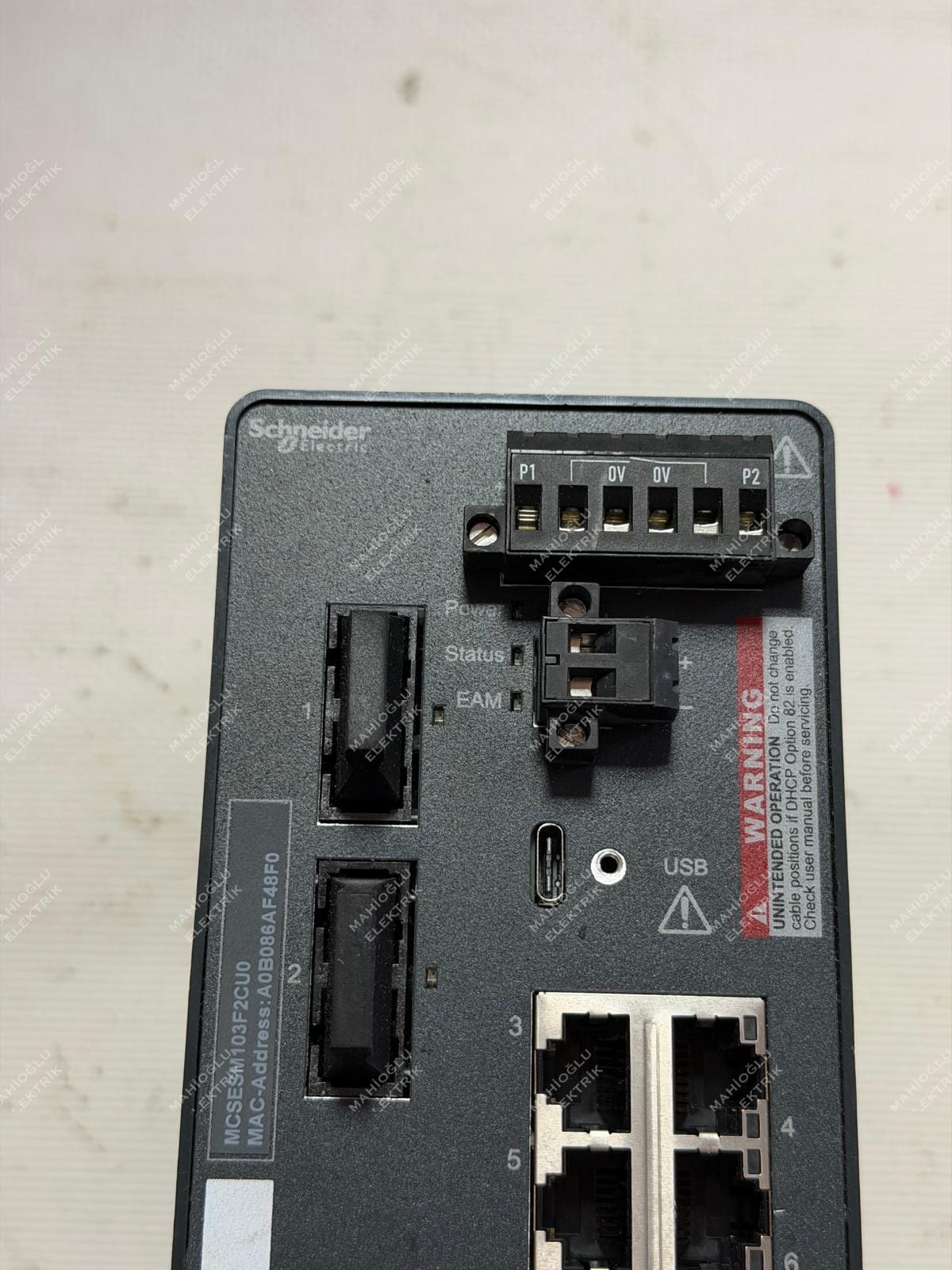

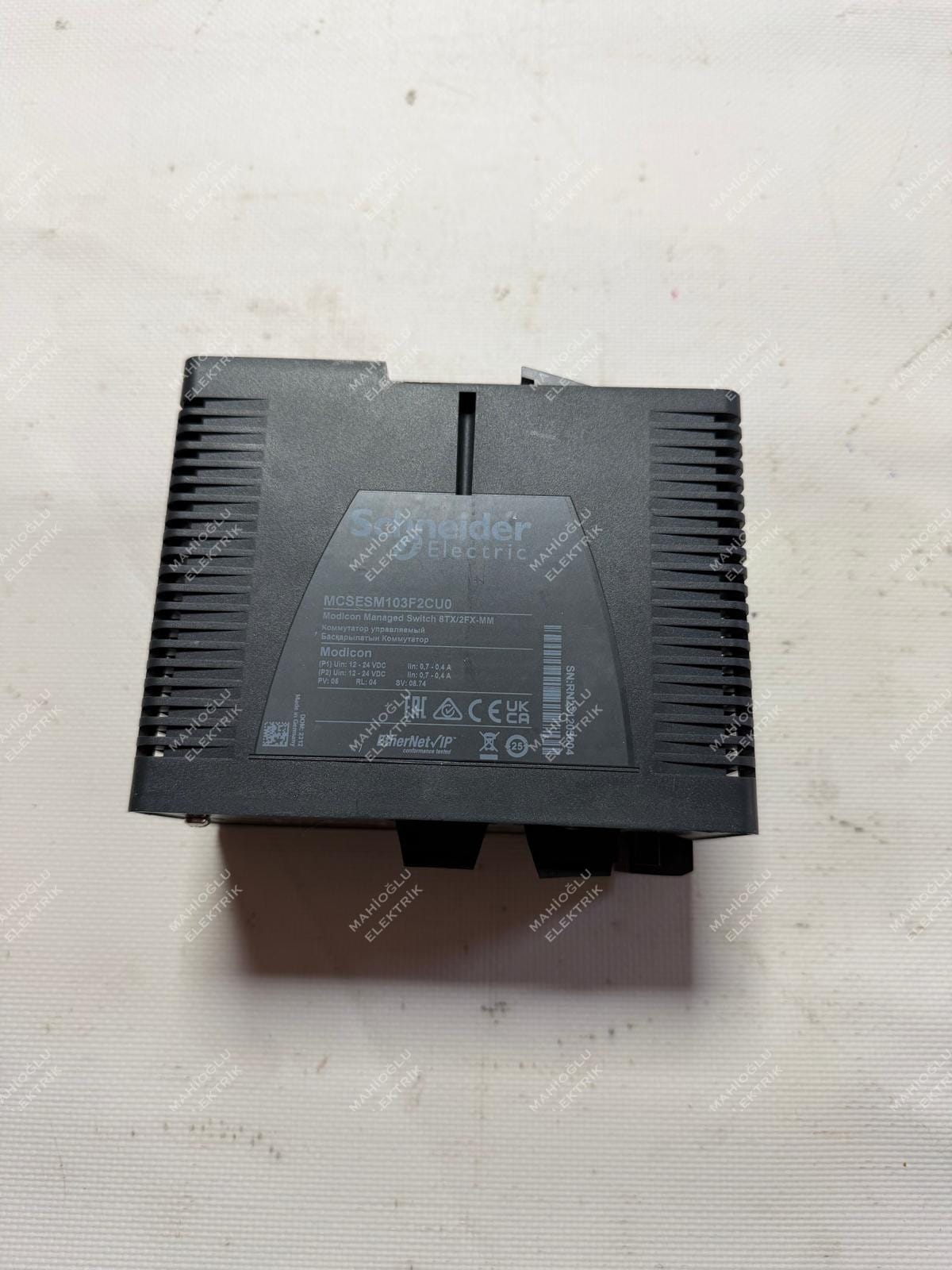

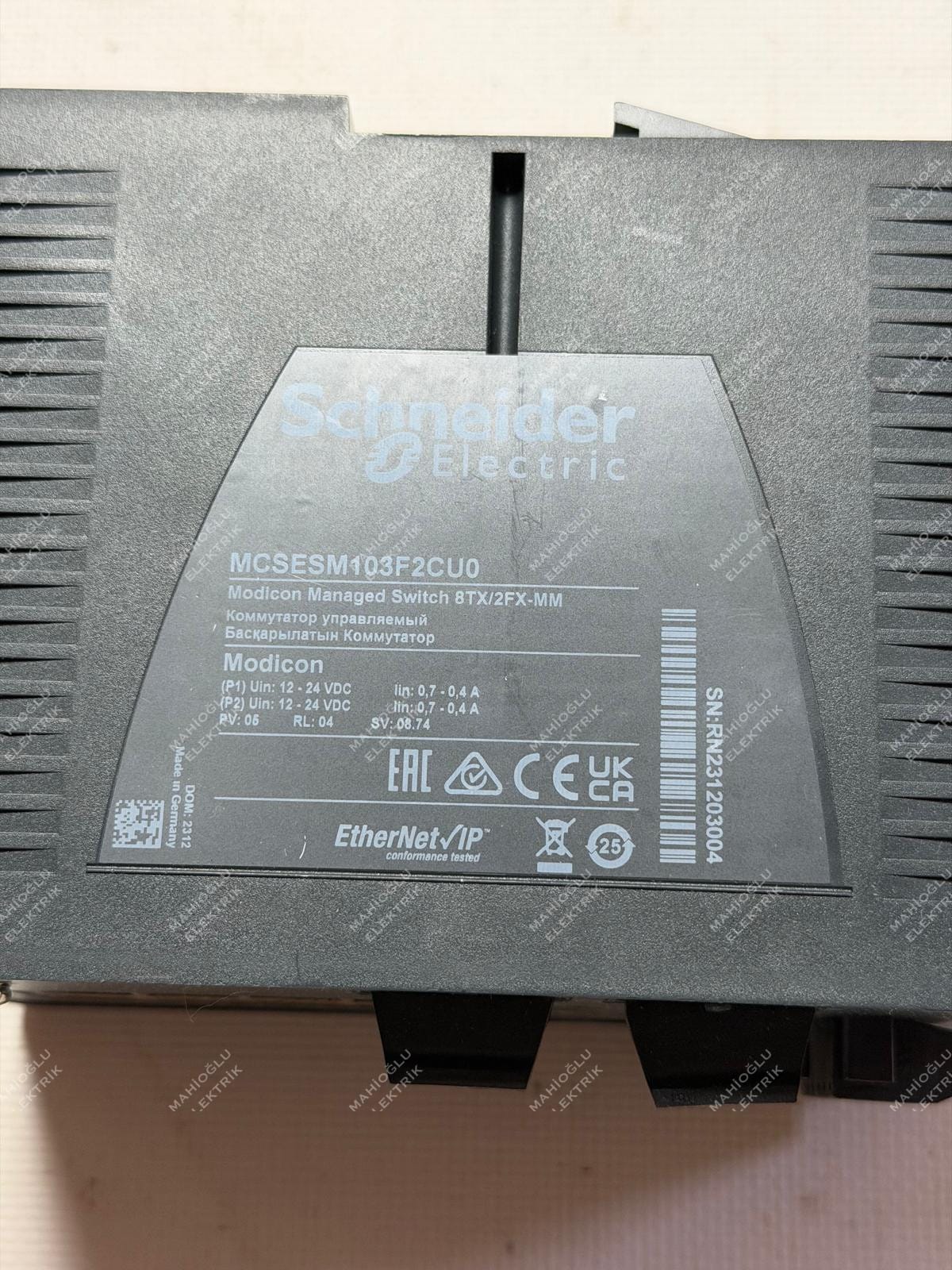

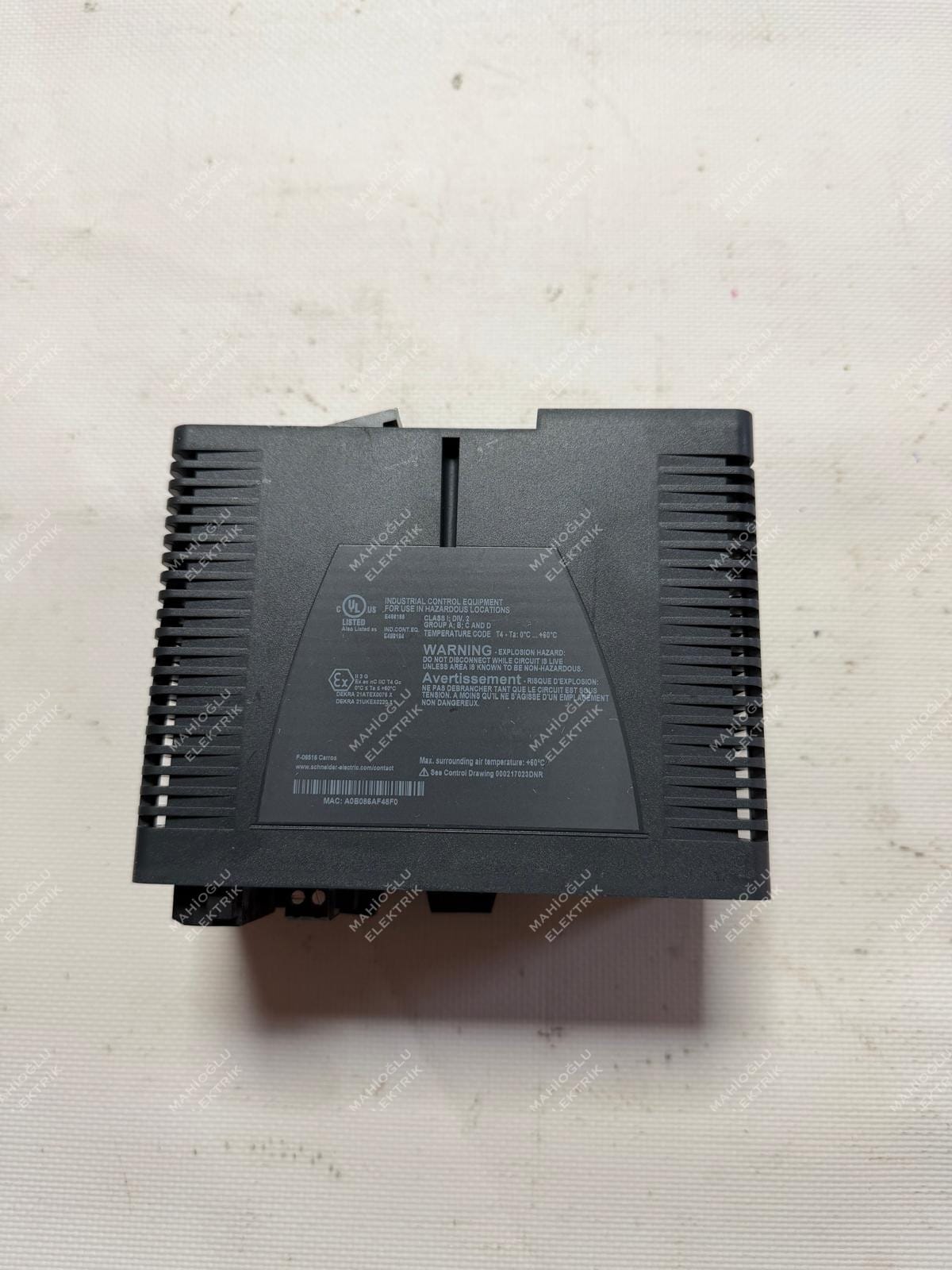

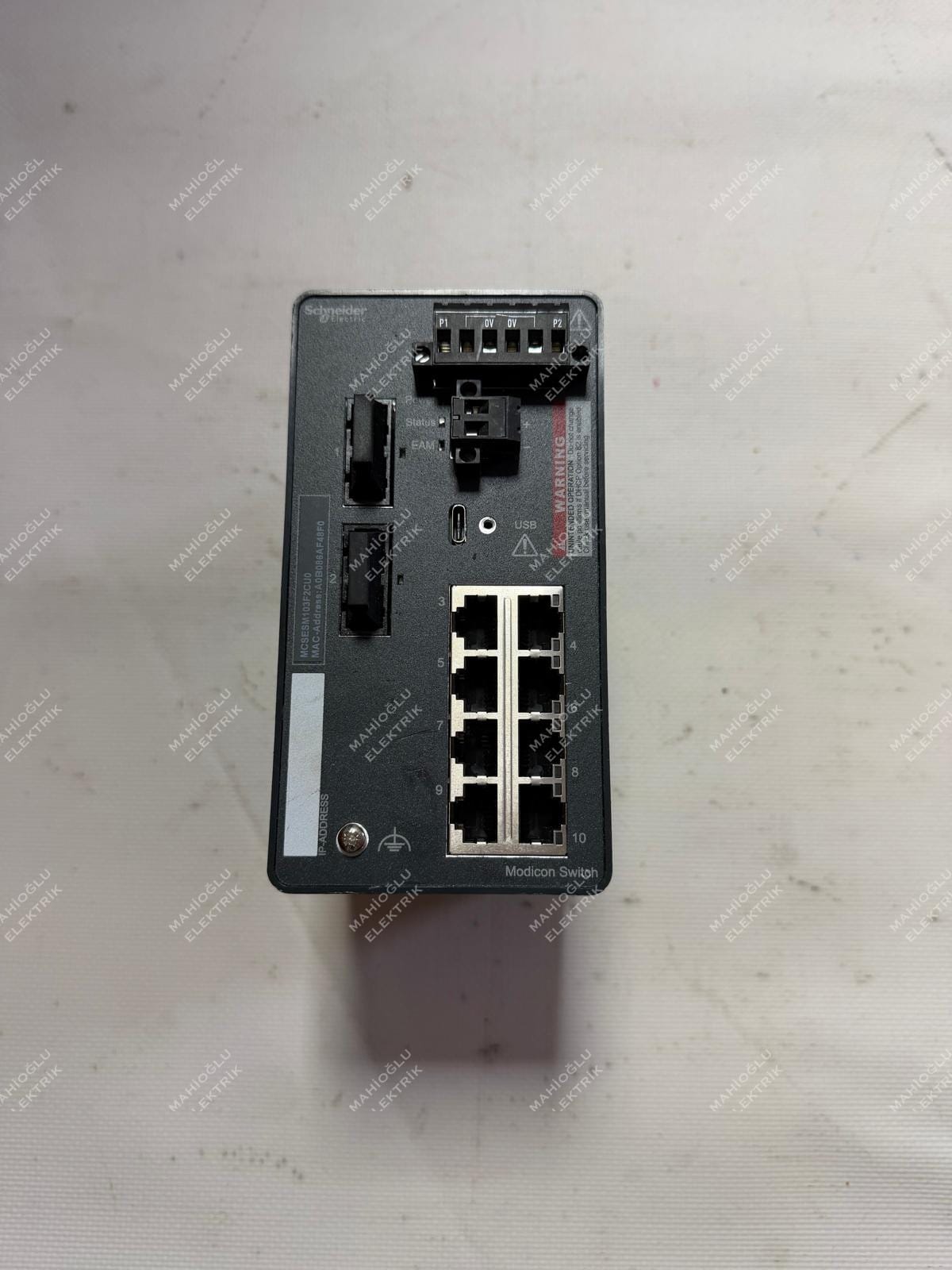

Schneider MCSESM103F2CU0 – Modicon Managed Switch 8TX 2FX-MM
Stokta
İkinci el üründür, sıfır ayarındadır.
Used item, in good condition, so clean, like new
Açıklama
İkinci el üründür, sıfır ayarındadır.
Used item, in good condition, so clean, like new
Schneider Electric MCSESM103F2CU0 – Modicon Managed Switch
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Range | Modicon Networking |
| Product Reference | MCSESM103F2CU0 |
| Product Type | Managed Ethernet Switch |
| Total Number of Ports | 10 |
| Copper Ethernet Ports | 8 × 10/100BASE-TX |
| Fiber Optic Ports | 2 × 100BASE-FX |
| Fiber Type | Multimode |
| Fiber Connector | Duplex SC |
| Copper Connector | Shielded RJ45 |
| Maximum Copper Distance | 100 m |
| Fiber Transmission Distance | Up to 4 km with 62.5/125 µm fiber; up to 5 km with 50/125 µm fiber |
| Supply Voltage | 12…24 V DC |
| Operating Voltage Range | 9.6…32 V DC |
| Power Consumption | Approximately 8 W |
| Mounting | 35 mm DIN rail |
| Ingress Protection | IP30 |
| Operating Temperature | 0…60 °C |
| Relative Humidity | 1…95%, non-condensing |
| Alarm Output | 1 × potential-free relay contact, 1 A |
| Approx. Dimensions | 73 × 138 × 111 mm |
| Approx. Weight | 0.7 kg |
Network & Communication Features
- Ethernet TCP/IP
- HTTP / HTTPS
- SNMP
- SSH
- Telnet
- SFTP / SCP
- TFTP
- SNTP
- LLDP
- VLAN
- IGMP Snooping
- Quality of Service (QoS)
- Port Mirroring
- Multicast Filtering
- Data Flow Control
- SYSLOG
- SNMP Trap
Redundancy & Network Management
The MCSESM103F2CU0 supports advanced industrial Ethernet redundancy and network management functions, including:
- HIPER-Ring
- RSTP – Rapid Spanning Tree Protocol
- MRP – Media Redundancy Protocol
- Link Aggregation
- Link Backup
- Redundant Network Coupling
- Ring redundancy
- Network diagnostics
- Port monitoring
Cybersecurity Features
The switch provides several industrial network security functions:
- IP-based port security
- MAC-based port security
- Port-based access control
- Role-Based Access Control (RBAC)
- RADIUS authentication
- HTTPS
- Denial-of-Service (DoS) protection
- VLAN-based Access Control Lists (ACL)
- Audit Trail
- SNMP logging
Fiber Optic Specifications
The unit is equipped with 2 × 100BASE-FX multimode fiber optic ports using Duplex SC connectors.
- 62.5/125 µm multimode fiber: up to 4 km
- 50/125 µm multimode fiber: up to 5 km
- Suitable for industrial Ethernet communication and network redundancy applications.
Mounting & Environmental Specifications
- Mounting: 35 mm DIN rail
- Protection: IP30
- Operating temperature: 0…60 °C
- Relative humidity: 1…95%, non-condensing
- Power supply: 12…24 V DC
- Designed for industrial automation and Ethernet networking applications.
Typical Applications
The Schneider Electric MCSESM103F2CU0 is suitable for:
- Industrial automation networks
- PLC communication
- SCADA systems
- Control systems
- Industrial Ethernet networks
- Manufacturing plants
- Process automation
- Redundant Ethernet networks
- Marine and industrial applications
Product description:
Schneider Electric Modicon MCSESM103F2CU0 Managed Ethernet Switch, 8 × 10/100BASE-TX Copper Ports + 2 × 100BASE-FX Multimode Fiber Ports, 12–24 VDC.
