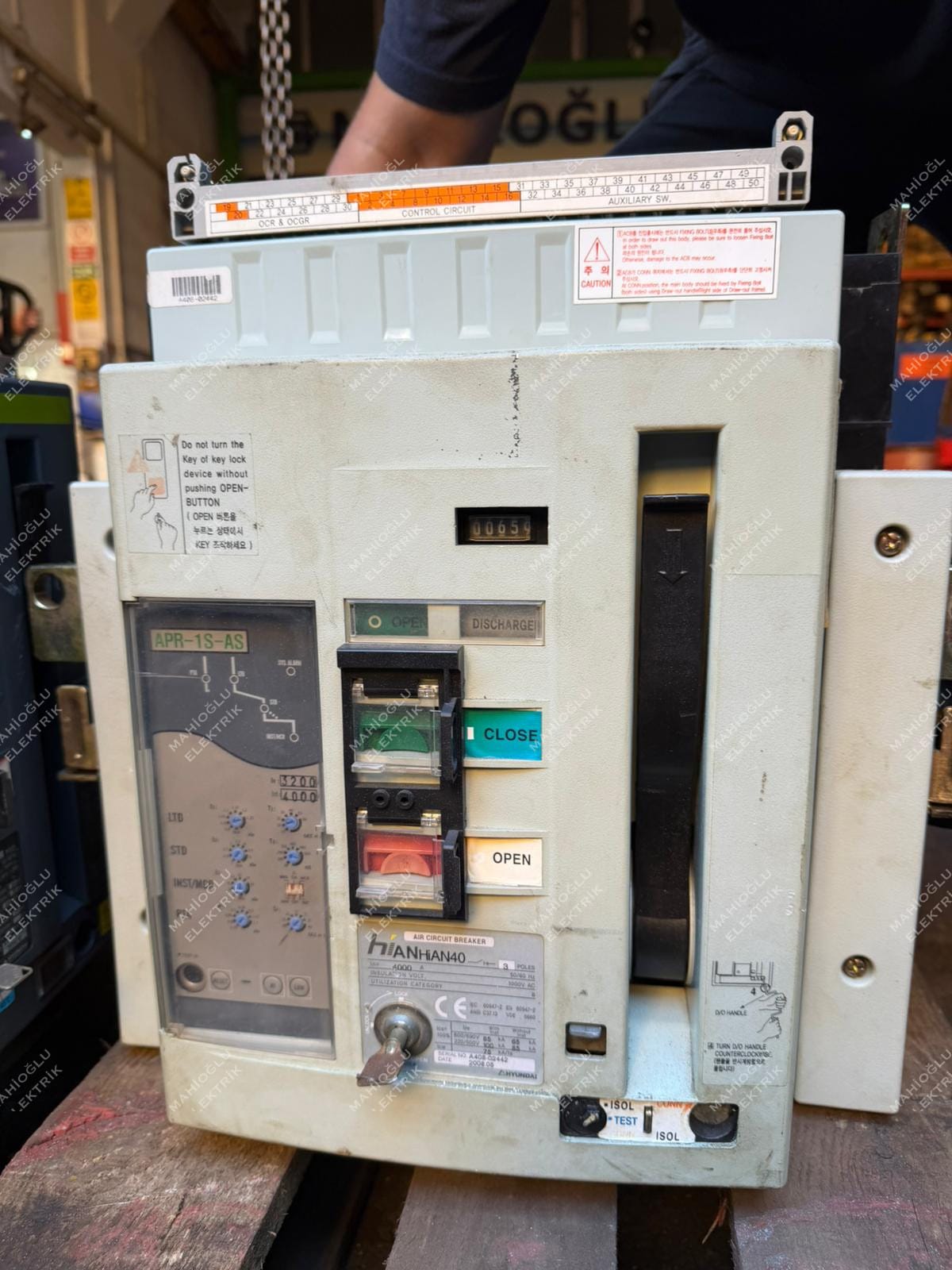

HYUNDAI HiAN40 4000 Amper 3 Pole Air Circuit Breaker

HYUNDAI HiAN40, yüksek akım kapasiteli Açık Tip Devre Kesici (ACB – Air Circuit Breaker) olup endüstriyel, enerji dağıtım ve denizcilik uygulamalarında kullanılır.

Teknik Özellikler

Koruma Fonksiyonları

HiAN40, kullanılan APR elektronik koruma rölesine bağlı olarak aşağıdaki koruma fonksiyonlarını sağlayabilir:

• Uzun süreli aşırı akım koruması (Long Time)
• Kısa süreli aşırı akım koruması (Short Time)
• Ani aşırı akım koruması (Instantaneous)
• Toprak arızası koruması (Ground Fault)
• Şönt açtırma bobini (Shunt Trip)
• Düşük gerilim açtırma bobini (Undervoltage Trip)
• Motorlu yay kurma mekanizması
• Yardımcı kontaklar
• Uzaktan Açma/Kapama
• Çekmeceli tip pozisyon göstergesi
• Anti-pumping fonksiyonu

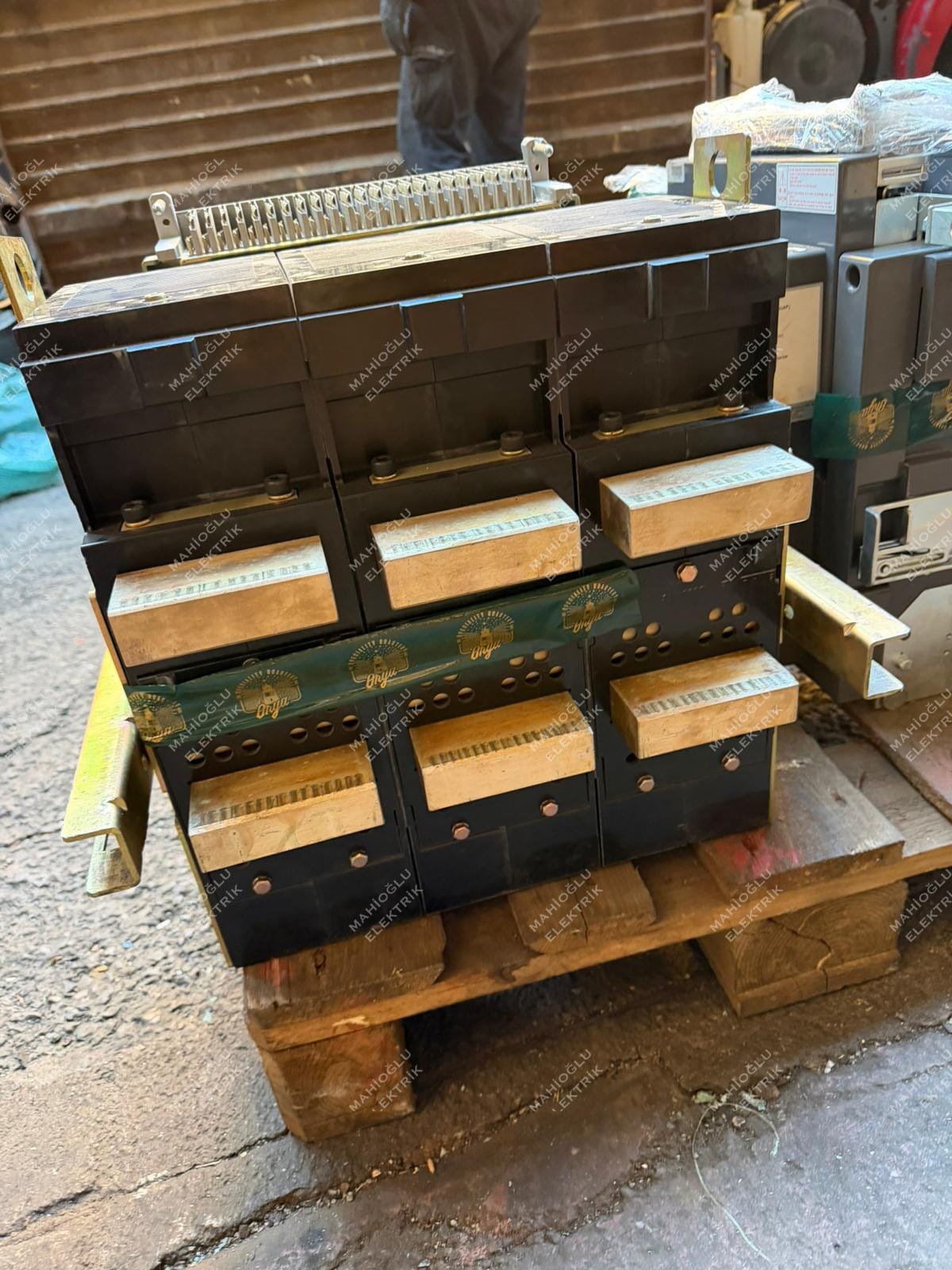

Boyutlar – 3 Kutuplu Çekmeceli Tip

Yaklaşık değerler:

• Genişlik: 420 mm
• Yükseklik: yaklaşık 462–481 mm
• Derinlik: yaklaşık 478 mm
• Panel kesim ölçüsü: yaklaşık 292 mm
• Montaj deliği: Ø14 mm
• Terminal montaj deliği: Ø11 mm

  -------------------

  The HYUNDAI HiAN40 is a high-capacity Air Circuit Breaker (ACB) designed for industrial and marine applications. The HiAN40 has a 4000 A rated current and is available as a 3-pole or 4-pole breaker.

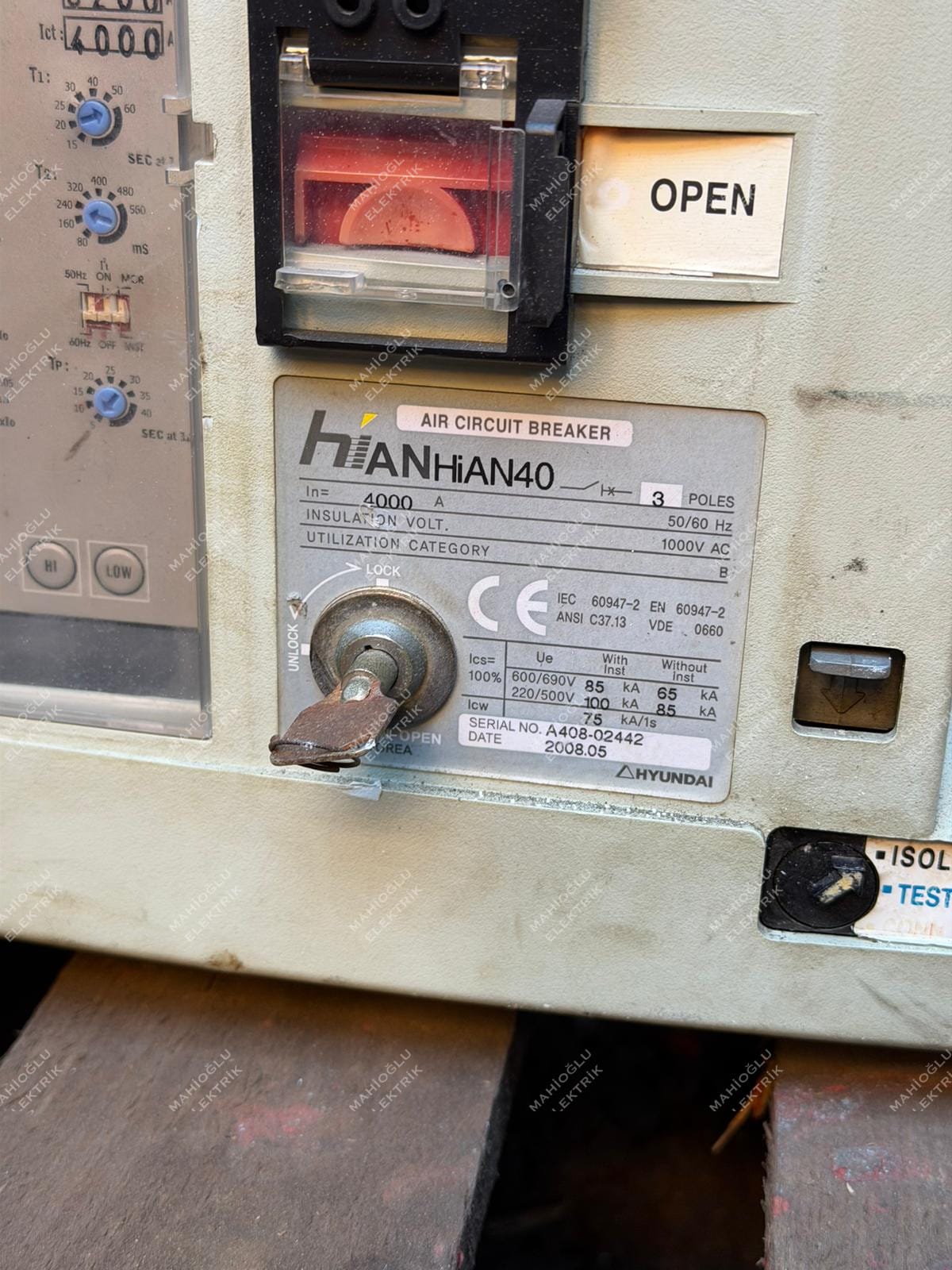

  Technical Specifications

  Parameter	Specification
  Manufacturer	Hyundai Heavy Industries
  Series / Type	HiAN
  Model	HiAN40
  Circuit Breaker Type	Air Circuit Breaker (ACB)
  Rated Current (In)	4000 A
  Number of Poles	3 Poles
  Rated Insulation Voltage (Ui)	1000 V AC
  Rated Operational Voltage (Ue)	690 V AC
  Standard	IEC 60947-2
  Utilization Category	Category B
  Rated Short-Circuit Breaking Capacity (Icu)	Up to 100 kA @ 500 V AC
  Rated Short-Circuit Breaking Capacity at 690 V	Up to 65 kA class, depending on configuration
  Rated Short-Time Withstand Current (Icw)	50 kA / 1 s
  Rated Impulse Withstand Voltage (Uimp)	12 kV
  Rated Making Capacity (Icm)	Up to approximately 105 kA peak @ 500 V AC
  Mounting	Fixed / Draw-out depending on configuration
  Protection Relay	APR series electronic over-current protection
  Application	Industrial, power distribution, marine
  Busbar Connection	3 × 140 mm × 10 mm busbars
  Busbar Capacity	4000 A at 30°C–40°C under specified conditions
  Operating Temperature Reference	40°C open-air rating
  3-Pole Draw-out Weight	Approximately 96 kg
  Internal Resistance – Draw-out	Approx. 10 mΩ
  Power Loss – Draw-out	Approx. 397 W

  The manufacturer's catalogue specifies 3 × 140 × 10 mm busbars for HiAN40 at the 4000 A rating. Temperature derating reduces the allowable current to approximately 3880 A at 50°C and 3560 A at 60°C under the catalogue's specified conditions.

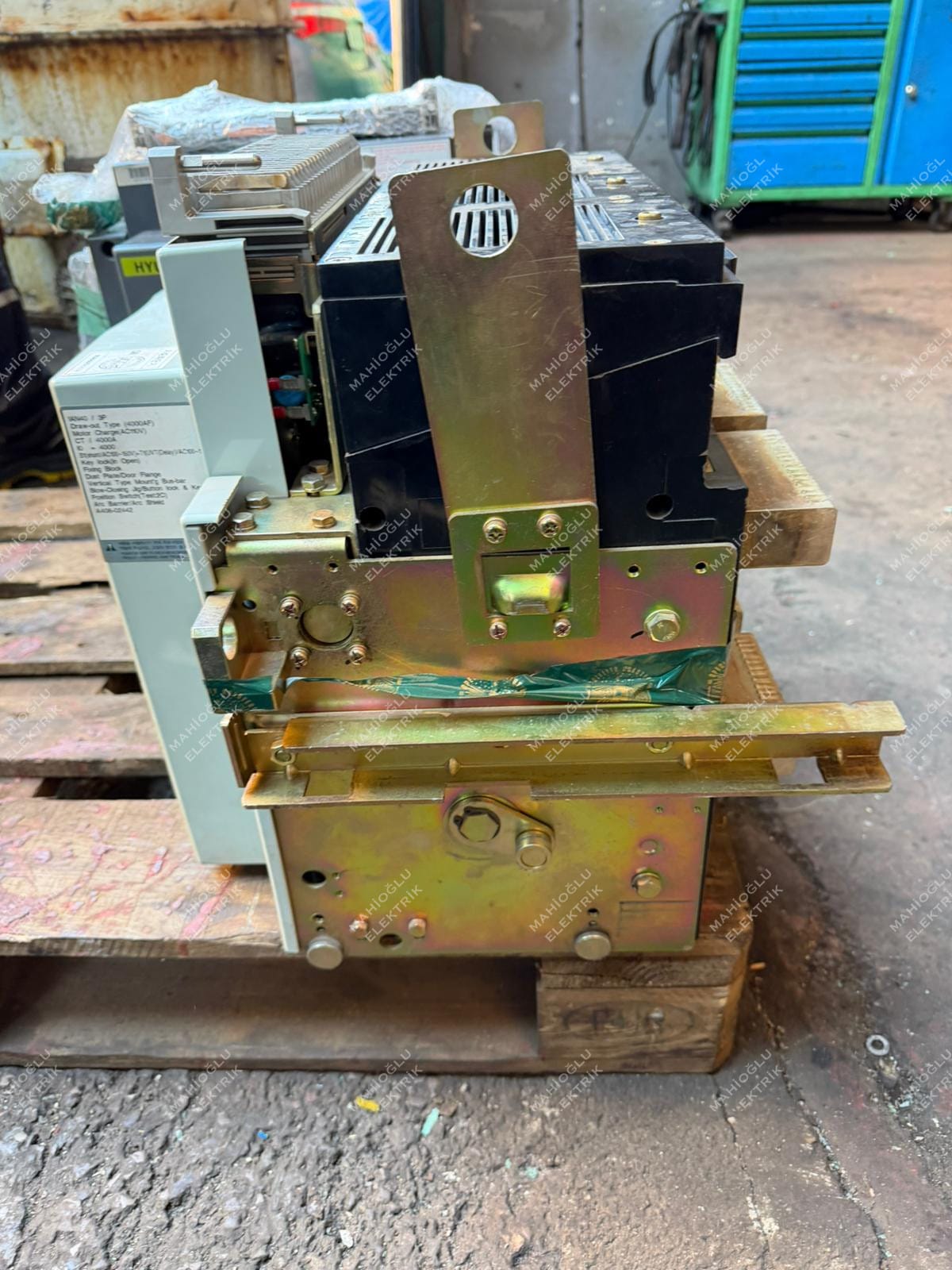

  Dimensions – 3-Pole Draw-Out Version

  For the HiAN40 3-pole draw-out ACB, the catalogue gives approximately:

  • Width: 420 mm
  • Overall width with associated dimensions: approximately 480.4 mm
  • Height: approximately 462–481 mm depending on mounting/busbar arrangement
  • Depth: approximately 477.6 mm
  • Panel cut-out: approximately 292 mm
  • Mounting hole: Ø14 mm
  • Terminal mounting holes: Ø11 mm

  The exact dimensions depend on whether the breaker uses horizontal or vertical busbars.

  Protection & Accessories

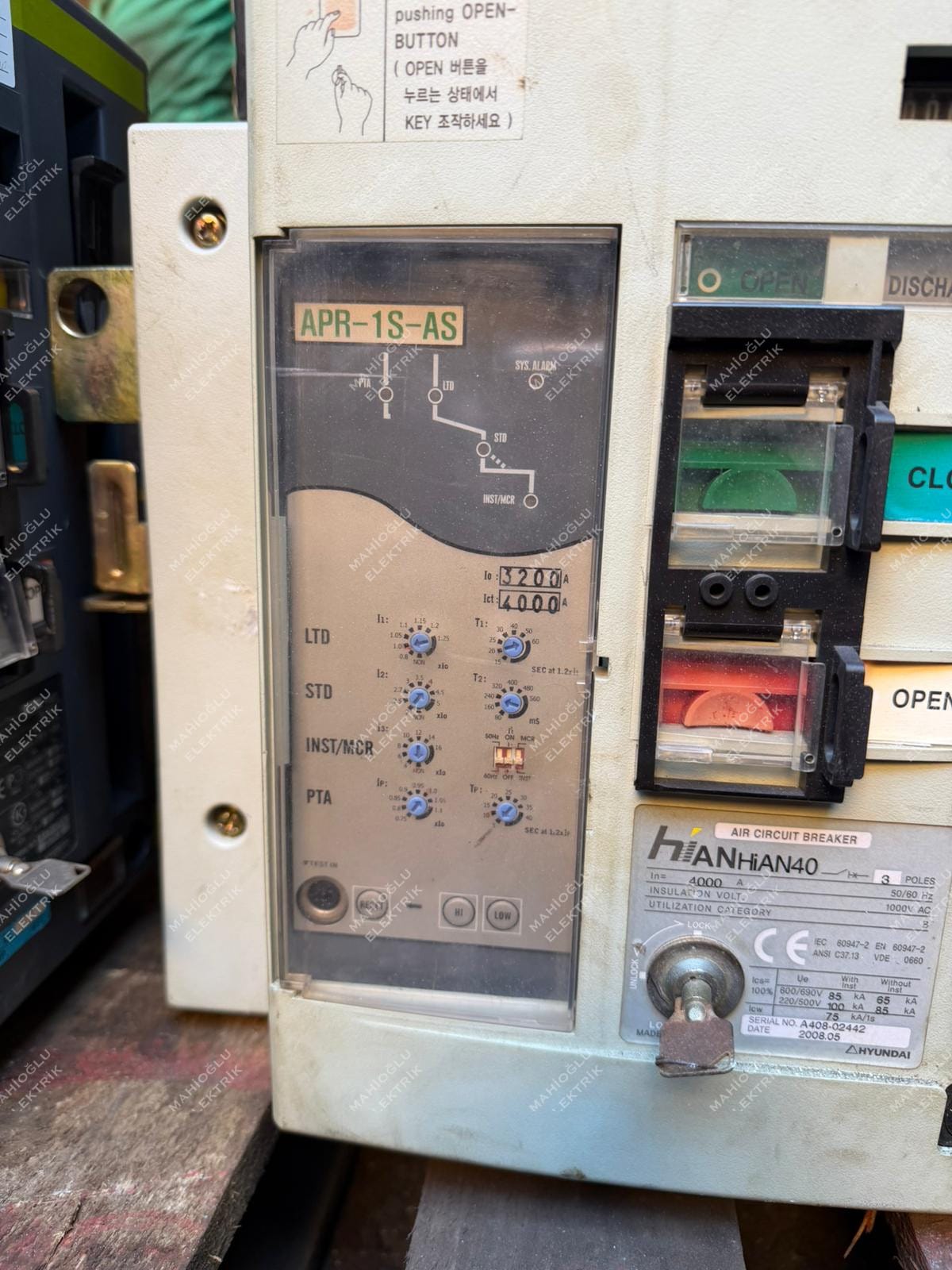

  The HiAN40 can be equipped with Hyundai's APR electronic protection relays, including functions such as:

  • Long-time overcurrent protection
  • Short-time overcurrent protection
  • Instantaneous overcurrent protection
  • Ground-fault protection, depending on APR configuration
  • Shunt trip (SHT)
  • Undervoltage trip (UVT)
  • Motorized spring charging
  • Auxiliary contacts
  • Draw-out position indication
  • Remote ON/OFF operation
  • Anti-pumping function

  For a 3-pole HiAN40 used on a 3-phase, 4-wire system with ground-fault protection, Hyundai specifies a 4000/0.2 A neutral CT, Class 1.0.
