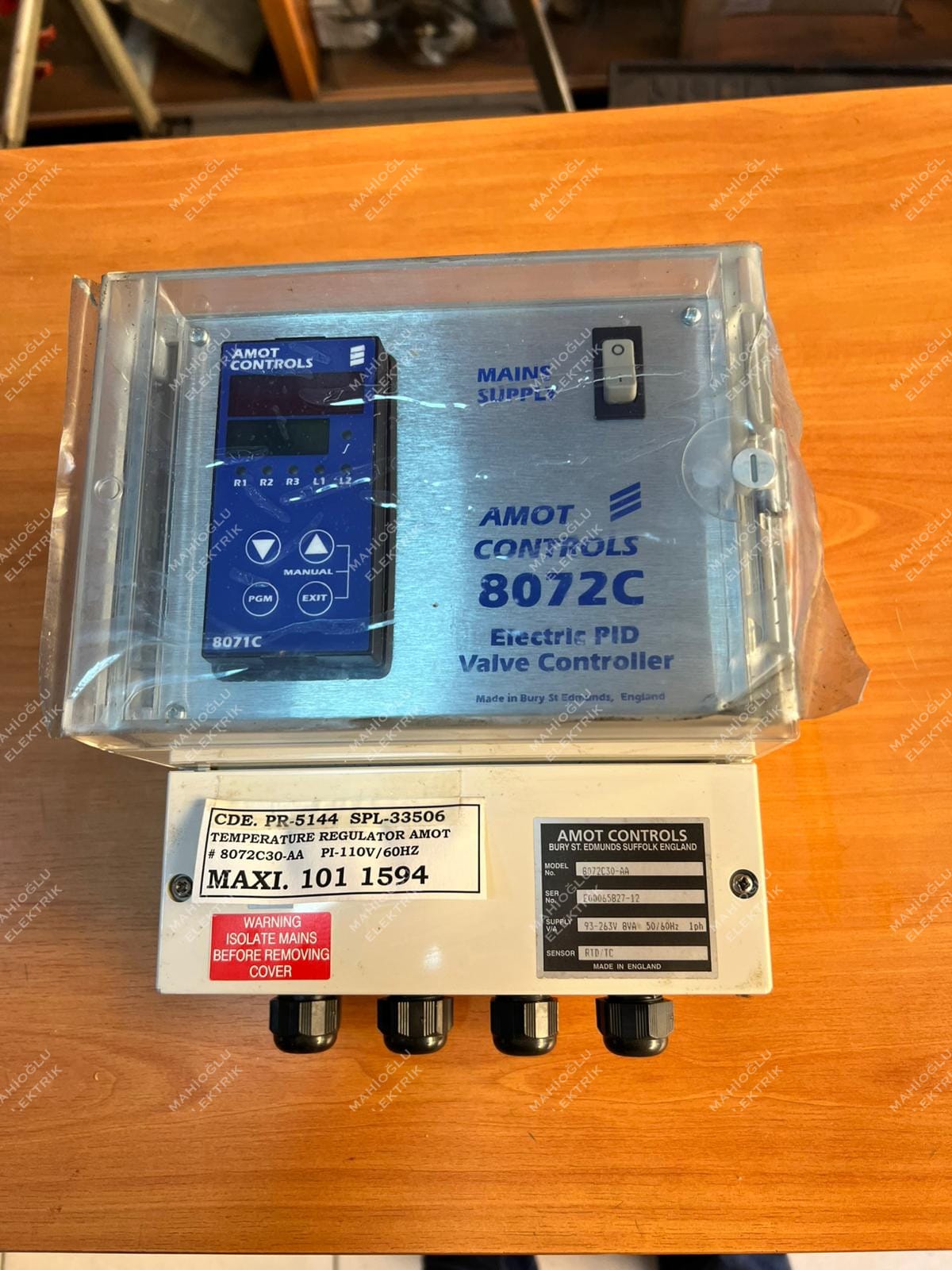

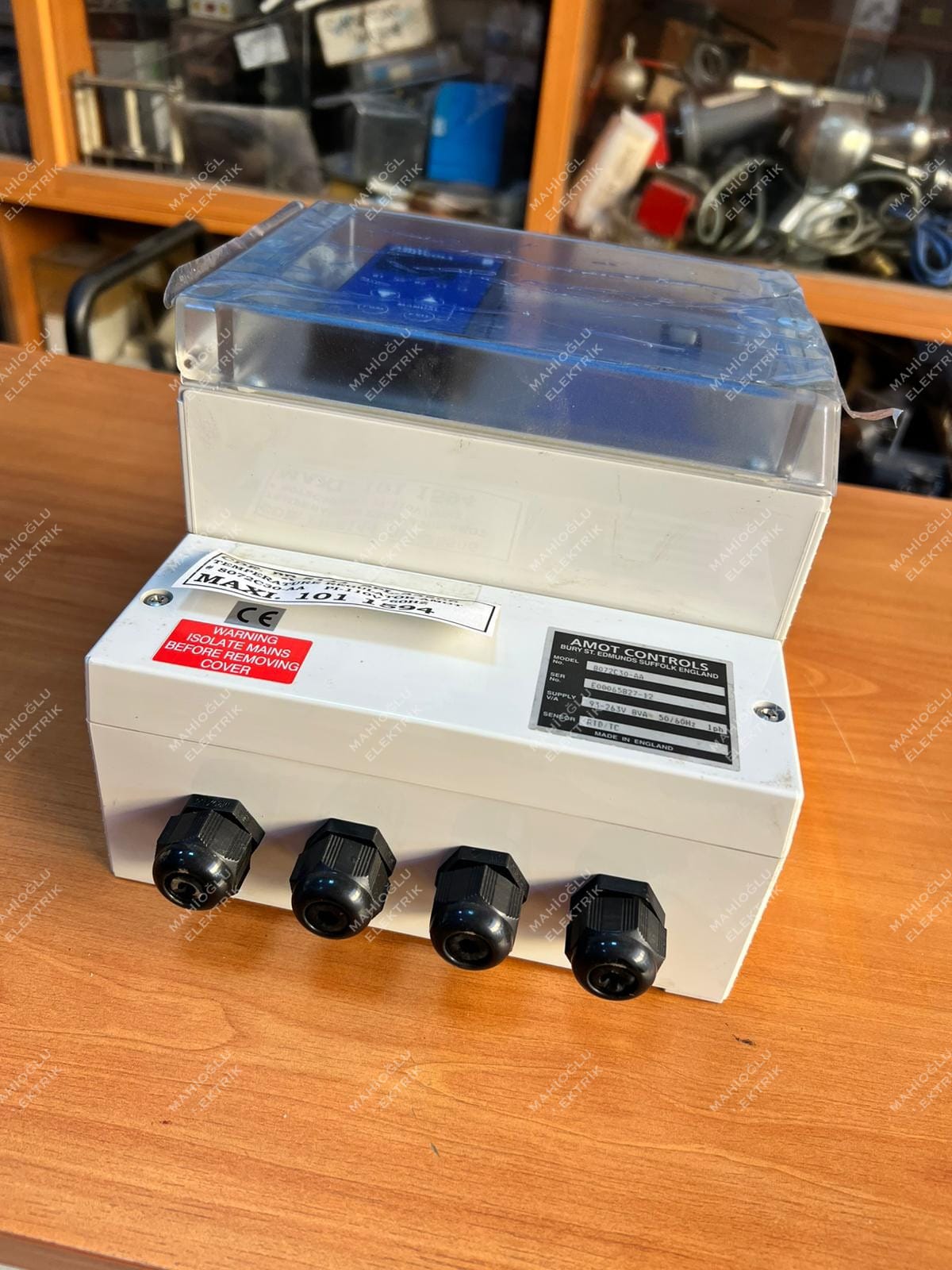

AMOT Controls 8072C30-AA Electric PID Position Valve Controller Technical Specifications
AMOT Controls 8072C30-AA is an industrial PID-based valve position controller designed for electric or electro-pneumatic actuated valves. It is commonly used with AMOT G-Type temperature control valves in engine, turbine, and heat exchanger applications.
General Specifications
| Specification |
Value |
| Manufacturer |
AMOT Controls |
| Model |
8072C30-AA |
| Series |
8072C |
| Product Type |
Electric PID Position Valve Controller |
| Control Type |
Fully programmable PID |
| Application |
Electric / electro-pneumatic valve control |
| Typical Applications |
Engines, turbines, heat exchangers |
| Mounting Type |
Bulkhead / panel mount |
| Protection Rating |
IP65 enclosure (8072 series) |
| Country of Origin |
United Kingdom |
Power Supply Specifications
| Parameter |
Value |
| Supply Voltage |
93–263 VAC |
| Frequency |
50/60 Hz |
| Phase |
Single phase |
| Power Consumption |
8–13 VA max |
Input Specifications
| Feature |
Value |
| Supported Sensor Types |
RTD / Thermocouple / 4-20 mA / 0-10 V |
| RTD Support |
2-wire or 3-wire |
| Measurement Range |
-200°C to +850°C |
| Typical Control Range |
0°C to 120°C |
| RTD Accuracy |
±0.05% |
| Thermocouple Accuracy |
±0.25% |
| Analog Accuracy |
±0.1% |
| Sampling Time |
Adjustable 50–250 ms |
| Resolution |
16-bit dynamic resolution |
Control & Output Specifications
| Feature |
Value |
| PID Control |
Digital filtered PID |
| Analog Outputs |
Up to 2 programmable outputs |
| Number of Setpoints |
2 |
| Parameter Sets |
2 |
| Limit Comparators |
4 |
| Timer Functions |
2 |
| Self-Tuning |
2 automatic optimization procedures |
| Manual Mode |
Supported |
| Communication Option |
RS485 |
Relay Specifications
| Parameter |
Value |
| SSR Type |
Solid State Relay |
| Relay Current Rating |
7 A / 50 A options |
| Isolation |
Opto-isolated |
| Switching Type |
Zero-cross switching |
Environmental Specifications
| Parameter |
Value |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-40°C to +70°C |
| Humidity |
<90% RH non-condensing |
Key Features
- Fully programmable PID control
- Supports electric and electro-pneumatic valves
- RTD, thermocouple, and 4-20 mA input compatibility
- Manual operating mode
- Self-tuning PID optimization
- Optional RS485 communication
- Solid-state relay controlled operation
- Designed for industrial engine and turbine systems
- Compatible with AMOT G-Type temperature control valves
